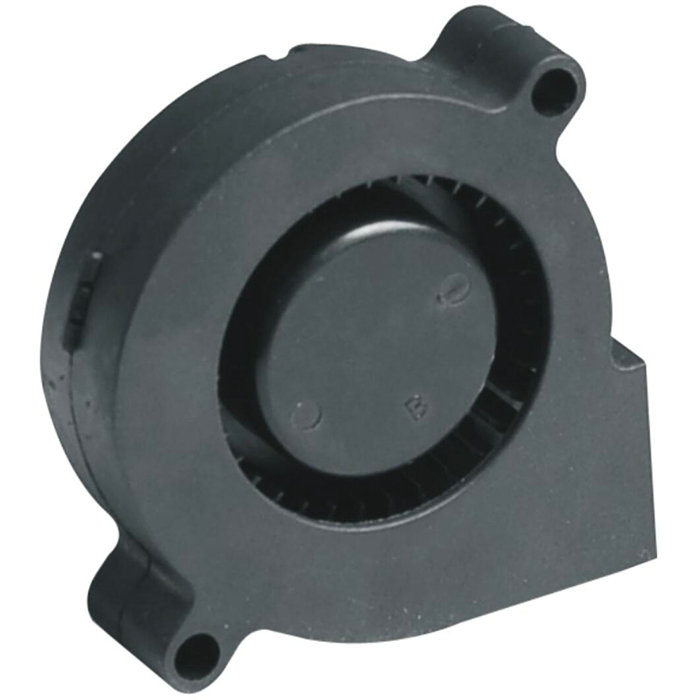

    SFT5015
    SFT5015
    Category：DC FAN

    Brief description

    Model: SF5015
    Size: 50x50x15mm
    Rated Voltage: 12VDC, 24VDC, 48DC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 26g

  • Brief description
  • Model: SF5015
    Size: 50x50x15mm
    Rated Voltage: 12VDC, 24VDC, 48DC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 26g

    • Size: 50x50x15mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFT5015B(S)-5L

      √

      √

      5

      0.32

      5000

      4.35

      7.40

      11.35

      34

      SFT5015B(S)-5M

      √

      √

      0.22

      4000

      3.42

      5.81

      7.48

      28

      SFT5015B(S)-5H

      √

      √

      0.12

      3000

      2.38

      4.05

      3.46

      24

      SFT5015B(S)-12L

      √

      √

      12

      0.14

      5000

      4.35

      7.40

      11.35

      34

      SFT5015B(S)-12M

      √

      √

      0.10

      4000

      3.42

      5.81

      7.48

      28

      SFT5015B(S)-24H

      √

      √

      0.06

      3000

      2.45

      4.17

      3.46

      24

      SFT5015B(S)-24L

      √

      √

      24

      0.12

      5000

      4.35

      7.40

      11.35

      34

      SFT5015B(S)-24M

      √

      √

      0.09

      4000

      3.42

      5.81

      7.48

      28

      SFT5015B(S)-24H

      √

      √

      0.06

      3500

      2.91

      4.95

      3.46

      26



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 26g

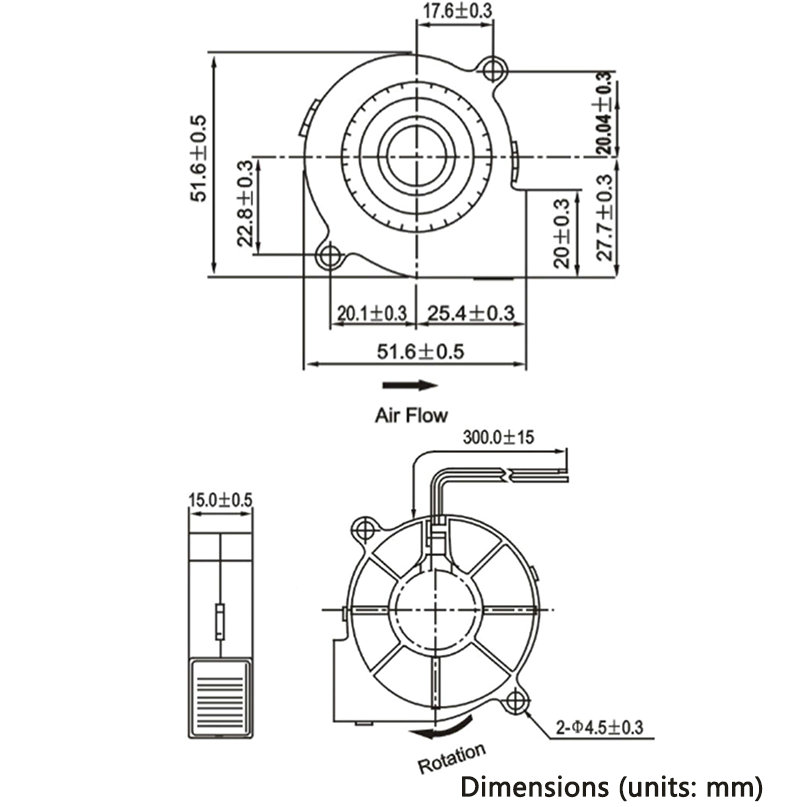

      Dimensions:
