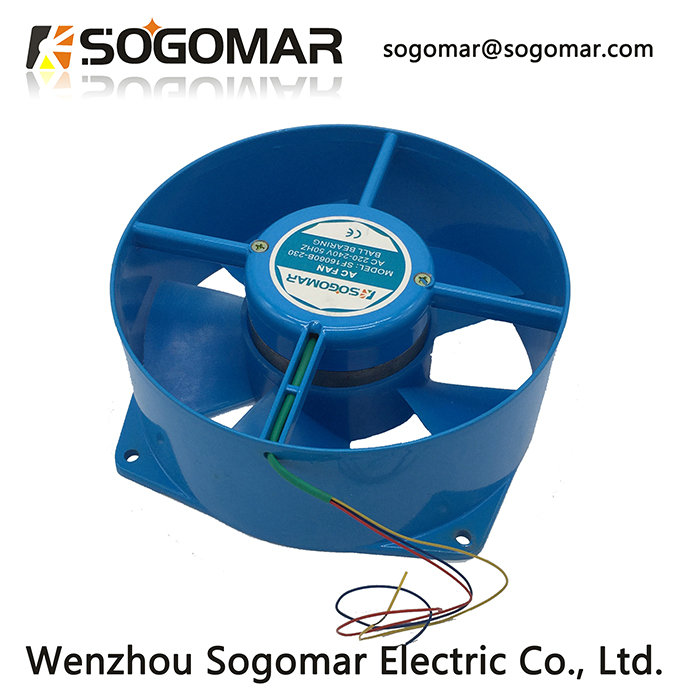

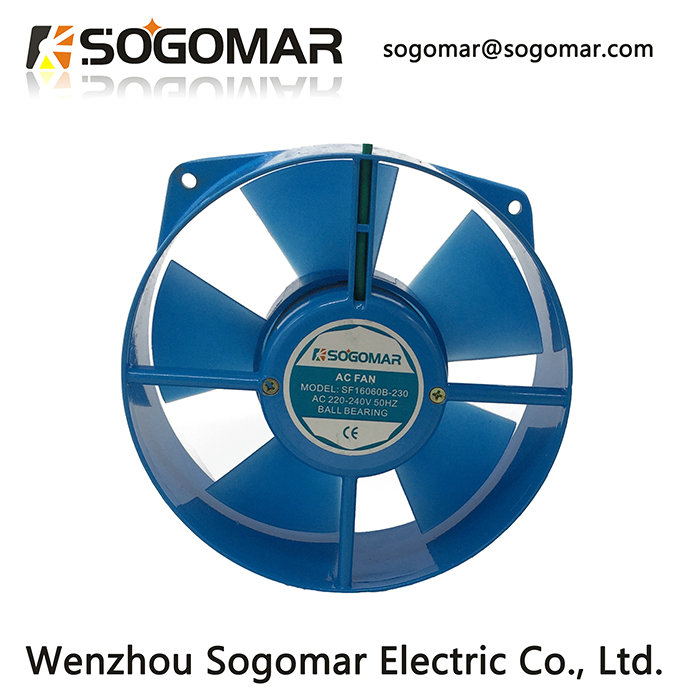

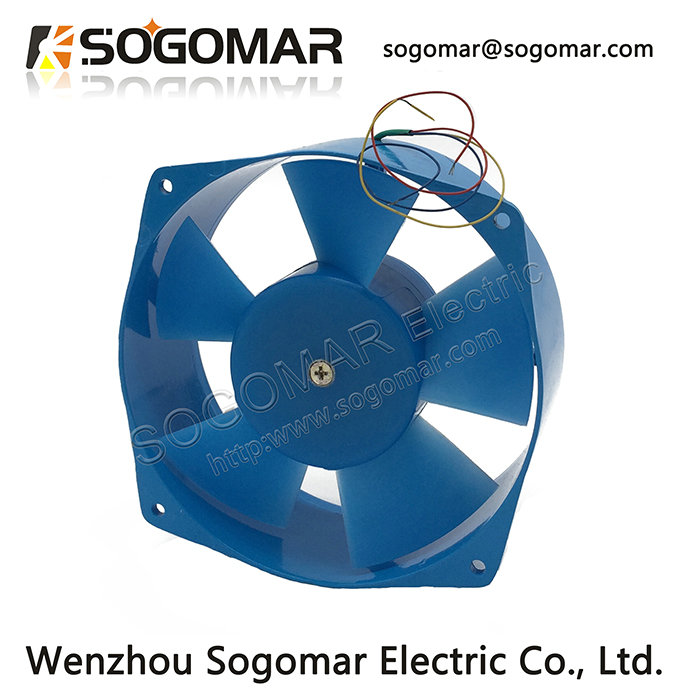

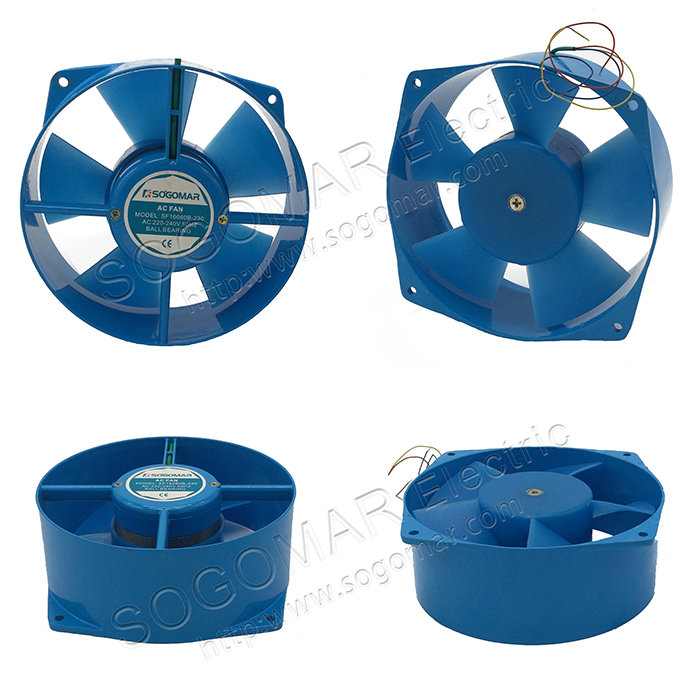

    SF16060
    SF16060
    Category：AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF16060
    Size: 160x160x60mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Blue
    Package: 34.5*34.4*34.5cm,20PCS/Carton,17kg

  • Brief description
  • SF16060
    Size: 160x160x60mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Blue
    Package: 34.5*34.4*34.5cm,20PCS/Carton,17kg

    • Size: 160x160x60mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF16060B-2 230 50/60 0.15 23 2600 130 220 100 65 1.0/500
      SF16060B-3 380 50/60 0.13 28 2610 220 374 160 65 ----
      SF16060B-3 380 50/60 0.13 28 2610 220 374 160 65 0.47/630



      Information:

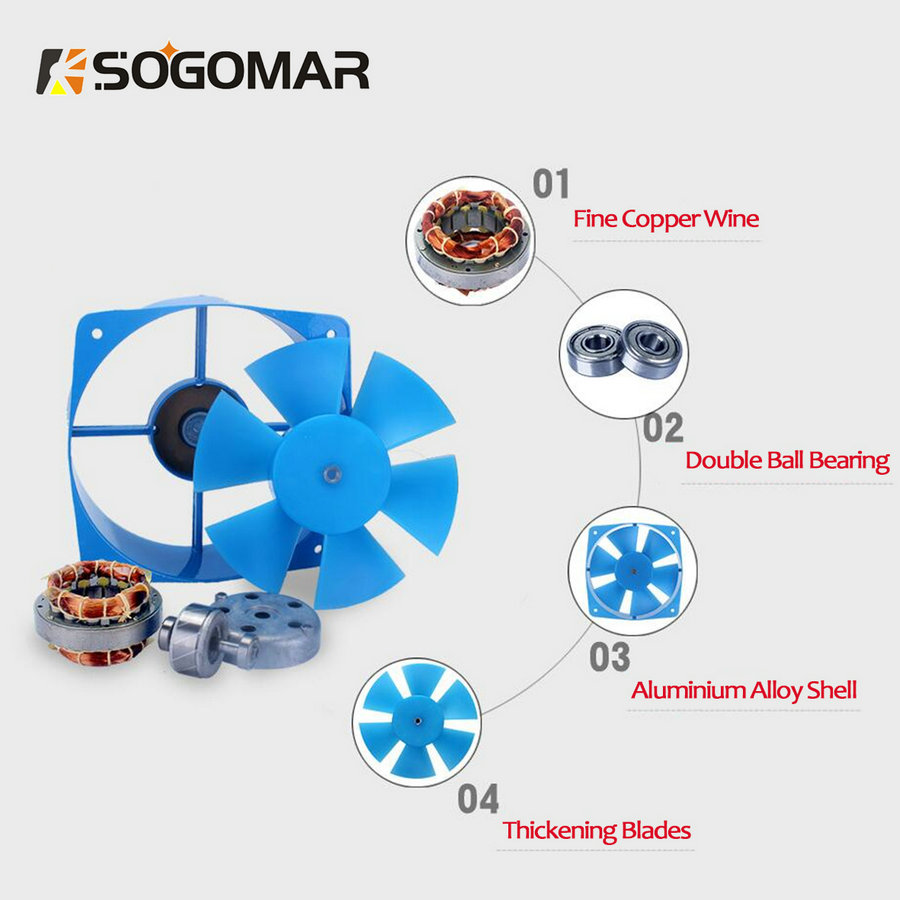

      Motor:Squirrel cage motor structure
      Frame：Aluminium alloy die-casting by single falnge, surfaces is finished by blue anti-corrosion treatment
      Impellers:Blue plastic PBT UL94V-0
      Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight：675g



      Dimensions:
